Description

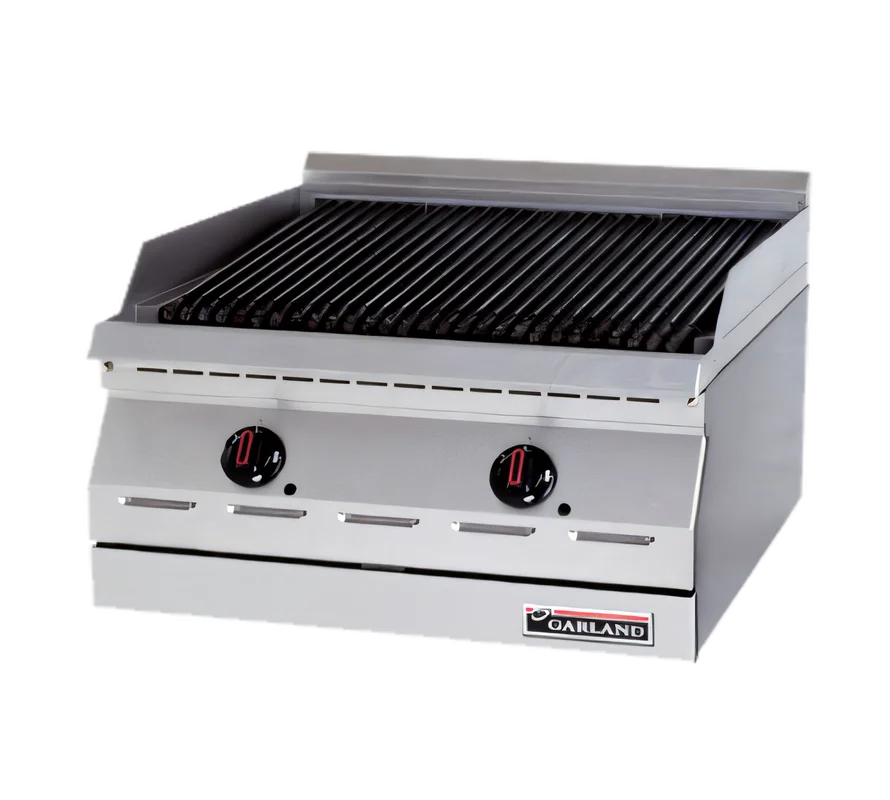

Garland Designer Series 24″ Gas Charbroiler – 60,000 BTU
Model GD-24RB | Countertop | Cast-Iron Radiants
Deliver steak-house sear and smoky flavor in a compact 24-inch ’s Designer Series GD-24RB couples rugged cast-iron radiants with 60,000 BTU of fire-power, giving chefs the intense, even heat they need for perfectly char-marked steaks, burgers, vegetables and more—all day, every day.
Why you’ll love it
- 17-1/4″ (436 mm) deep cast-iron cooking grates for superior heat retention and clean grill marks.
- Reliable piezo spark ignition—no electrical hook-up required.
- Hi/Lo valve control lets operators dial in the perfect flame in seconds.
- Internal front grease drawer with magnetic door keeps the work surface tidy and removes for fast cleanup.
- Durable stainless-steel front & sides stand up to daily commercial abuse.
- 4″ (102 mm) adjustable stainless sanitary legs for a rock-solid, level installation.
- Rear ¾“ NPT gas connection supplied with factory pressure regulator.
- Certified to CSA & NSF standards for safety and sanitation.
Technical specifications
| Model | GD-24RB |
|---|---|
| Total input | 60,000 BTU/h • 17.6 kW |
| Gas type | Natural or Propane |
| Manifold connection | ¾“ NPT (rear) with pressure regulator |
| Operating pressure | Natural 4″ WC (10 mbar) | Propane 10″ WC (24.9 mbar) |
| Overall dimensions (W×D×H) | 24″ × 24″ × 15″ (610 × 610 × 381 mm) |
| Usable cooking surface | 24″ W × 17-1/4″ D (610 × 436 mm) |
| Construction | Stainless-steel front & sides, cast-iron radiants & grates |
| Certifications | CSA, NSF |
| Shipping weight | ≈150 lb (68 kg) |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Optional accessories
- Stainless-steel back & bottom panels
- Three-piece stainless broiler splatter guard (adds 10″ height)
- Designer Series equipment stands (fixed-leg or caster models)
Gas ratings are for installations up to 2,000 ft (610 m) above sea altitude when ordering higher-elevation units.
Installation note: For commercial use must be placed on a non-combustible surface with 0″ clearance to non-combustible walls and connected in accordance with local codes and Garland’s installation manual.
