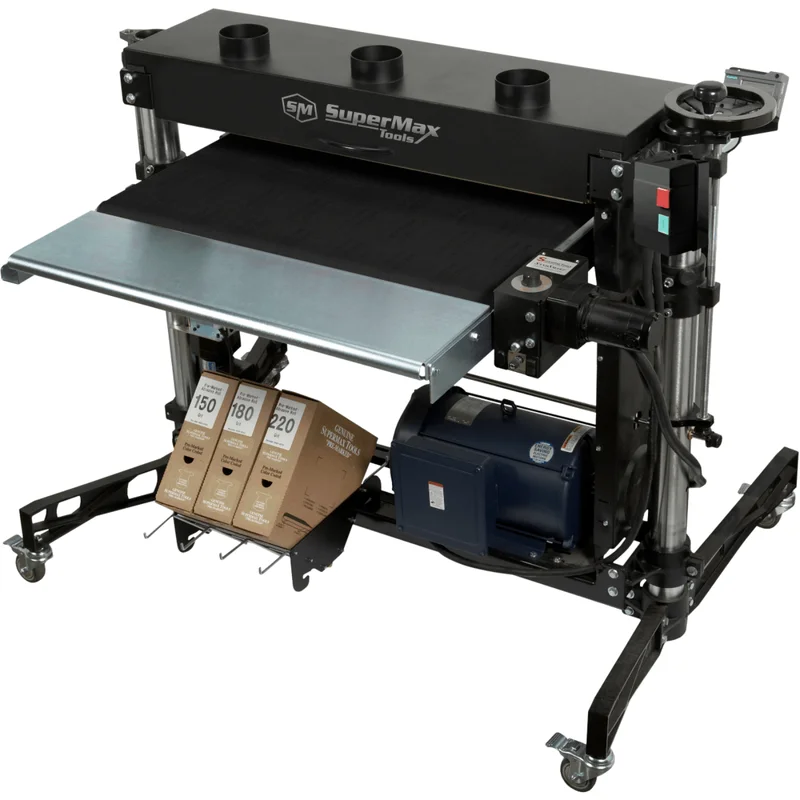

Laguna Tools Classic Double Drum Sander 37×2 – SUPMX-937003
Sand two grits in a single pass with a 37×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP 220 Volt 1 phase motor, you can significantly reduce the amount of time you spend sanding.
The 37×2 Double Drum Sander features INTELLISAND Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor. Available in Single phase only.
Features
- Flattness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
- Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
- Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
- Easiest access to abrasive fastening system of any drum sander! Machine design includes additional space around abrasive, eliminating the need for special tools.
- Self-colling drum prevents overheating and extends abrasive life
Sanding Capacity
- Maximum Width (in): 37″
- Minimum Length (in): 3-½″
- Maxiumum Thickness (in): 12″
- Minimum Thickness (in): 1/32″
- Dimensions (H x W x D): 43″ x 58″ x 31″
- Drum (Extruded Aluminum): 5″ x 37″
- Drum Speed: 1740 RPM
- Dust Hood (Steel Hood, Hinged At Back): (3) – 4″ Vacuum ports, Min. CFM: 1000 recommended
- Ball Bearings (1″): 4, sealed and permanently lubricated
- Conveyor Motor: 100 in.-lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM
- Drive Motor (TEFC): 5 HP
- Power Requirements: 208-230V, 60Hz, 1 Phase 30 Amp Service; 3 Phase 20 Amp Service
- Shipping Dimensions (L x W x H): 62″ x 52″ x 45″
Manual
- 37×2 Sander Manual
What Our Experts Think
-
High-Capacity Sanding: The 37″ double-drum design allows sanding of wide stock and large panels efficiently in a single pass.
-
Dual-Drum Efficiency: Two sanding grits in one run save time and ensure a uniform, fine finish.
-
Smart Feed System: IntelliSand® automatically adjusts conveyor speed to prevent burning, gouging, or uneven sanding.
-
Industrial Strength Build: Cast-iron frame, precision-balanced drums, and reinforced conveyor bed deliver consistent flatness and durability.
-
Professional Performance: Equipped with a 5 HP motor, it’s ideal for production shops requiring high output and accuracy.
Q&A
Q: What is the maximum sanding width and thickness?
A: It can sand material up to 37″ wide and 12″ thick.
Q: What type of motor does it use?
A: A heavy-duty 5 HP motor operating on 220 V single-phase power.
Q: How fast do the drums rotate?
A: The drums operate at approximately 1,740 RPM for smooth, even results.
Q: Can it handle thin material?
A: Yes, it can process stock as thin as 1/32″ and as short as 3½″.
Maintenance Tips
-
Clean After Every Use: Remove dust and debris from drums and conveyor to ensure consistent surface quality.
-
Inspect and Align Drums: Regularly check for proper drum alignment to maintain even sanding results.
-
Lubricate Bearings and Moving Parts: Periodic lubrication extends life and prevents vibration.
-
Check Conveyor Belt Tension: Maintain correct tracking and tension for smooth, uniform feed.
-
Keep Dust Ports Clear: Clean all dust-collection ports to prevent clogging and overheating.
