Description

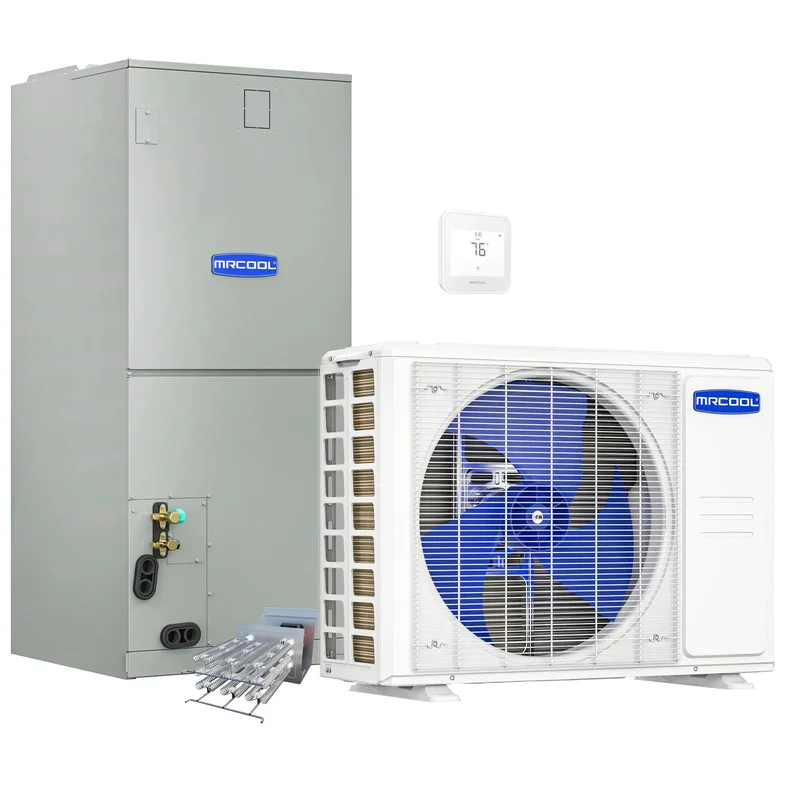

MRCOOL VersaPro 2nd Gen Central Split System with 48K BTU, 4 Ton, 16 SEER2, Heat Pump Condenser and Ducted Air Handler with 15kW Heat Kit – MVP48HP2A00OH15
The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.
Features
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton, 16 SEER2 Central Ducted Heat Pump Condenser
-
MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler
-
MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
-
MRCOOL Smart Thermostat
1. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton, 16 SEER2 Central Ducted Heat Pump Condenser (MVP-48-HP-C-230A00-O)
-
4 Ton
-
SEER2 rating of 16 and an HSPF4 rating of 8.5
-
R-454B refrigerant
-
10-year warranty covering the compressor and parts
2. MRCOOL VersaPro 2nd Gen 48K BTU, 4 Ton Central Ducted Air Handler (MVP-48-HP-MUAH-230A00-O)
-
4 Ton
-
SEER2 rating of up to 16.5
-
R-454B refrigerant
-
10-year warranty
3. MRCOOL 15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit (MVPHK15)
-
Compatible with the following air handlers: MVP-24-HP-MUAH-230A00-O, MVP-30-HP-MUAH-230A00-O, MVP-36-HP-MUAH-230A00-O, MVP-48-HP-MUAH-230A00-O, MVP-60-HP-MUAH-230A00-O
-
Works With: VersaPro 2nd Gen – Central Ducted Hyper Heat 2nd Gen
4. MRCOOL Smart Thermostat (MST04)
-
Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.
-
One App for All Your HVAC Systems
-
Global Control for Remote Accessibility
-
Works with Alexa, Google, Siri, and MRCOOL® Link
Specifications
| Condenser | |
|---|---|
| Dimensions | 16.14″ D x 38.39″ H x 38.58″ W |
| SEER2 | 16 |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 208-230 |
| Refrigerant Type | R454B |
| Air Handler | |
| Dimensions | 24.49″ D x 52.99″ H x 21.02″ W |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48000 |
| Heating Capacity (BTU) | 48000 |
| Voltage (V) | 115/208-230 |
| Heat Kit | |
| Gross Dimensions | 14.5″ D x 24″ H x 10.25″ W |
| Gross Weight | 15 Lbs |
What our Experts Think
-
Whole-Home Solution — A complete heating and cooling package featuring a 4-ton inverter heat pump condenser, matching air handler, and a powerful 15 kW heat kit.
-
Energy Efficient — Delivers up to 16 SEER2 cooling efficiency and reliable heating year-round.
-
Flexible Installation — Supports multi-position configurations: upflow, downflow, or horizontal—ideal for new or retrofit installs.
-
Cold Weather Ready — Built-in 15 kW electric heat kit ensures consistent performance even in low temperatures.
-
Quiet & Durable — Galvanized steel construction and variable-speed operation reduce noise and wear.
-
Smart Controls — Compatible with most modern thermostats and includes diagnostic features for easy servicing.
-
Low-GWP Refrigerant — Uses R-454B, a more eco-conscious option compared to R-410A.
Q&A
Q: What is the system’s heating and cooling capacity?
A: 48,000 BTU (4 Ton) for both heating and cooling.
Q: Is it energy efficient?
A: Yes, rated at 16 SEER2 for high efficiency.
Q: What type of system is this?
A: Central split system with heat pump condenser and ducted air handler.
Q: Does it include auxiliary heat?
A: Yes, comes with a factory-installed 15kW heat kit.
Q: What is the voltage requirement?
A: Designed for 208/230V applications.
Q: Is this compatible with standard ductwork?
A: Yes, fully compatible with traditional ducted HVAC setups.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and efficiency
-
Keep the outdoor condenser unit clear of debris, leaves, and obstructions
-
Inspect and clean evaporator and condenser coils annually to maintain performance
-
Check and clear condensate drain lines to prevent water damage
-
Inspect electrical connections, wiring, and circuit components regularly
-
Ensure proper thermostat function and settings for both cooling and heating modes
-
Schedule annual professional HVAC maintenance to ensure system reliability and longevity
